類別:轉盤軸承
瀏覽次數:23498次
產品特點:雙排同徑球回轉支承轉盤軸承主要用于風力發電機設備和混凝土運輸泵車。在風力發電設備中,軸承安裝在螺旋槳的根部,以充當側面螺旋槳。間隙要求為零或負,并且啟動摩擦扭矩大,回轉精度高。

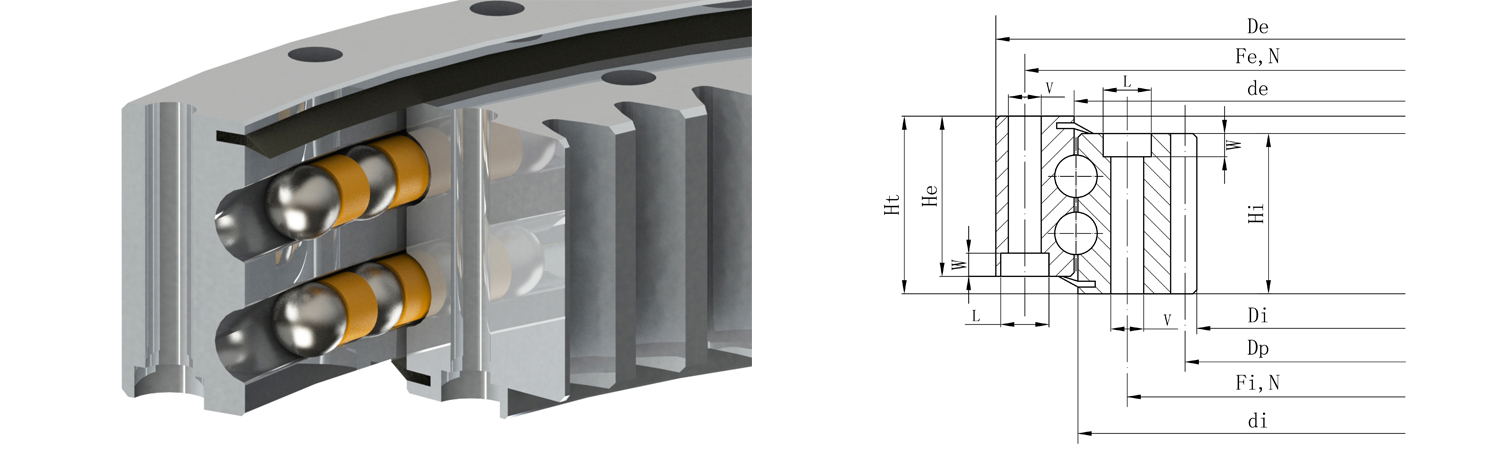

型號 | 外形尺寸 | 安裝尺寸 | 齒參數 | 載荷 | 重量 | ||||||||||||||
De | de | di | Di | He | Hi | Ht | Fe | Fi | N | V | L | W | m | Z | x·m | Dp | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | [mm] | [mm] | [kN] | [kg] | |||
2B22-E-0307 | 432 | 309 | 305 | 224 | 83 | 83 | 92 | 360 | 254 | 16 | 17 | 25 | 12 | 6 | 70 | - | 420 | 40.8 | 51 |
2B22-E-0383 | 504 | 385 | 381 | 300 | 83 | 83 | 92 | 436 | 330 | 16 | 17 | 25 | 12 | 8 | 61 | - | 488 | 81.6 | 64 |
2B25-E-0475 | 595 | 477 | 473 | 382 | 88 | 88 | 98 | 540 | 410 | 24 | 17 | 25 | 14 | 5 | 117 | - | 585 | 34 | 85 |
2B25-E-0575 | 712 | 577 | 573 | 470 | 88 | 88 | 98 | 640 | 508 | 24 | 17 | 25 | 9 | 8 | 87 | - | 696 | 81.6 | 123 |
2B20-E-0752 | 864 | 754 | 750 | 678 | 83 | 83 | 92 | 800 | 706 | 36 | 17 | 25 | 9 | 6 | 142 | - | 852 | 62 | 114 |
2B25-E-0821 | 979 | 823 | 819 | 718 | 92 | 92 | 102 | 893 | 753 | 36 | 21 | 31 | 15 | 10 | 94 | 11 | 940 | 141.2 | 200 |
2B20-E-0968 | 1080 | 970 | 966 | 893 | 83 | 83 | 92 | 1015 | 922 | 30 | 17 | 25 | 10 | 8 | 133 | - | 1064 | 82.6 | 148 |
2B25-E-1077 | 1200 | 1079 | 1075 | 976 | 88 | 88 | 98 | 1135 | 1012 | 36 | 19 | - | - | 8 | 148 | - | 1184 | 83.6 | 210 |
2B25-E-0980 | 1144 | 982 | 978 | 870 | 96 | 96 | 110 | 1050 | 910 | 36 | 21 | 31 | 12 | 10 | 111 | 8 | 1110 | 170 | 262 |
2B28-E-1117 | 1289 | 1120 | 1114 | 985 | 98 | 98 | 108 | 1198 | 1035 | 40 | 21 | 31 | 18 | 10 | 125 | 10.5 | 1250 | 160.4 | 332 |
2B28-E-1215 | 1380 | 1218 | 1212 | 1095 | 98 | 98 | 108 | 1290 | 1135 | 36 | 23 | 34 | 16 | 10 | 136 | - | 1360 | 144 | 334 |
2B30-E-1249 | 1476 | 1252 | 1246 | 1085 | 101 | 101 | 110 | 1350 | 1150 | 48 | 26 | 37 | 23 | 10 | 144 | 8.6 | 1440 | 172 | 502 |
2B35-E-1249 | 1472 | 1252 | 1246 | 1085 | 134 | 134 | 144 | 1350 | 1150 | 36 | 28 | 41 | 27 | 14 | 102 | 9.1 | 1428 | 295.6 | 640 |
2B30-E-1391 | 1603 | 1394 | 1388 | 1208 | 110 | 110 | 120 | 1500 | 1280 | 40 | 29 | - | - | 10 | 157 | 7.5 | 1570 | 202 | 636 |
2B35-E-1402 | 1604 | 1405 | 1399 | 1208 | 134 | 134 | 144 | 1500 | 1280 | 48 | 31 | 46 | 28 | 10 | 157 | 7 | 1570 | 295.6 | 710 |
2B35-E-1390 | 1634 | 1393 | 1387 | 1208 | 138 | 134 | 148 | 1500 | 1280 | 48 | 31 | 46 | 24 | 14 | 113 | 14 | 1582 | 354.6 | 800 |
2B35-E-1578 | 1805 | 1581 | 1575 | 1433 | 140 | 140 | 156 | 1671 | 1485 | 60 | 28 | 41 | 15 | 16 | 109 | 16.9 | 1744 | 411.2 | 810 |
內齒式雙排同徑球回轉支承型號尺寸參數
型號 | 外形尺寸 | 安裝尺寸 | 齒參數 | 載荷 | 重量 | ||||||||||||||
De | de | di | Di | He | Hi | Ht | Fe | Fi | N | V | L | W | m | Z | x·m | Dp | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | [mm] | [mm] | [kN] | [kg] | |||
2B22-I-0625 | 705 | 627 | 623 | 504 | 83 | 83 | 92 | 675 | 575 | 32 | 17 | 25 | 9 | 8 | 65 | - | 520 | 98.6 | 95 |
2B22-I-0763 | 850 | 765 | 761 | 641 | 83 | 83 | 92 | 820 | 705 | 36 | 17 | 25 | 17 | 8 | 81 | -4 | 648 | 128.4 | 128 |
2B20-I-0897 | 973 | 899 | 895 | 786 | 88 | 88 | 97 | 944 | 850 | 36 | 17 | 25 | 11 | 8 | 100 | - | 800 | 90.6 | 141 |
2B22-I-0885 | 982 | 887 | 883 | 754 | 88 | 88 | 97 | 944 | 826 | 36 | 21 | 31 | 14 | 8 | 95 | -4 | 760 | 123.6 | 170 |
2B25-I-0972 | 1074 | 974 | 970 | 820 | 100 | 96 | 114 | 1035 | 910 | 40 | 21 | - | - | 10 | 84 | - | 840 | 152 | 234 |
2B22-I-1088 | 1172 | 1090 | 1085 | 962 | 88 | 88 | 97 | 1134 | 1040 | 36 | 17 | 25 | 11 | 10 | 98 | - | 980 | 113.4 | 193 |
2B25-I-1103 | 1200 | 1105 | 1099 | 963 | 96 | 96 | 110 | 1160 | 1040 | 36 | 21 | 31 | 12 | 10 | 98 | - | 980 | 124.6 | 239 |
2B30-I-1143 | 1250 | 1147 | 1141 | 998 | 99.5 | 99.5 | 110 | 1208 | 1080 | 36 | 21 | 31 | 12 | 10 | 100 | -8 | 1000 | 182.6 | 276 |
2B28-I-1222 | 1345 | 1225 | 1219 | 1061.6 | 98 | 98 | 108 | 1290 | 1150 | 40 | 21 | 31 | 16 | 10 | 108 | - | 1080 | 146.6 | 331 |
2B30-I-1351 | 1470 | 1354 | 1348 | 1179 | 98 | 98 | 108 | 1425 | 1270 | 48 | 23 | 34 | 18 | 12 | 100 | - | 1200 | 171 | 365 |
2B40-I-1386 | 1530 | 1389 | 1383 | 1186 | 134 | 134 | 144 | 1480 | 1290 | 48 | 25 | 37 | 23 | 12 | 100 | - | 1200 | 226 | 627 |
2B30-I-1613 | 1750 | 1616 | 1610 | 1418.4 | 110 | 105 | 120 | 1705 | 1525 | 48 | 25 | 37 | 23 | 12 | 120 | - | 1440 | 186.2 | 564 |
2B45-I-1605 | 1780 | 1606 | 1602 | 1375 | 134 | 134 | 144 | 1710 | 1500 | 48 | 31 | 46 | 28 | 14 | 100 | - | 1400 | 274.8 | 840 |
2B35-I-1935 | 2100 | 1938 | 1932 | 1719 | 134 | 134 | 144 | 2035 | 1835 | 72 | 29 | - | - | 12 | 145 | - | 1740 | 228 | 965 |
2B35-I-2003 | 2178 | 2006 | 2000 | 1779 | 134 | 134 | 144 | 2108 | 1898 | 72 | 29 | - | - | 12 | 150 | - | 1800 | 228 | 1062 |
